ZC8850
Inference and training in one

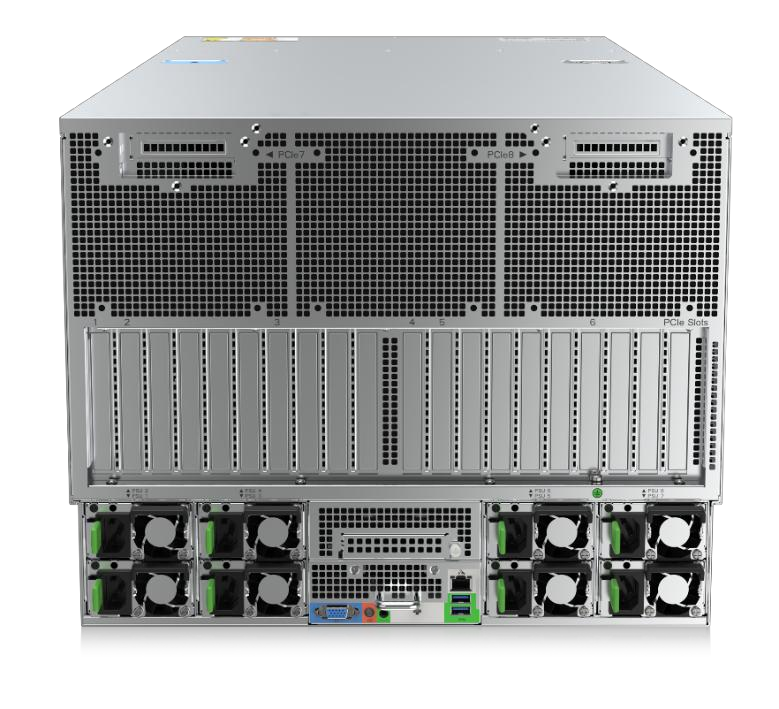

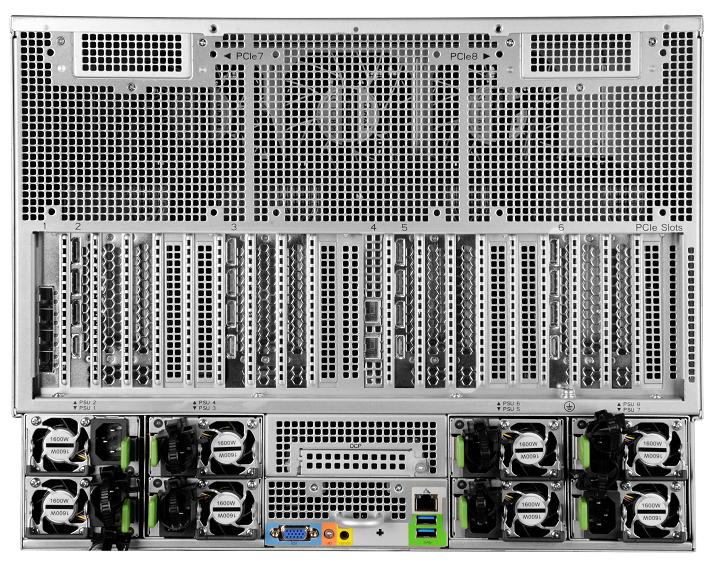

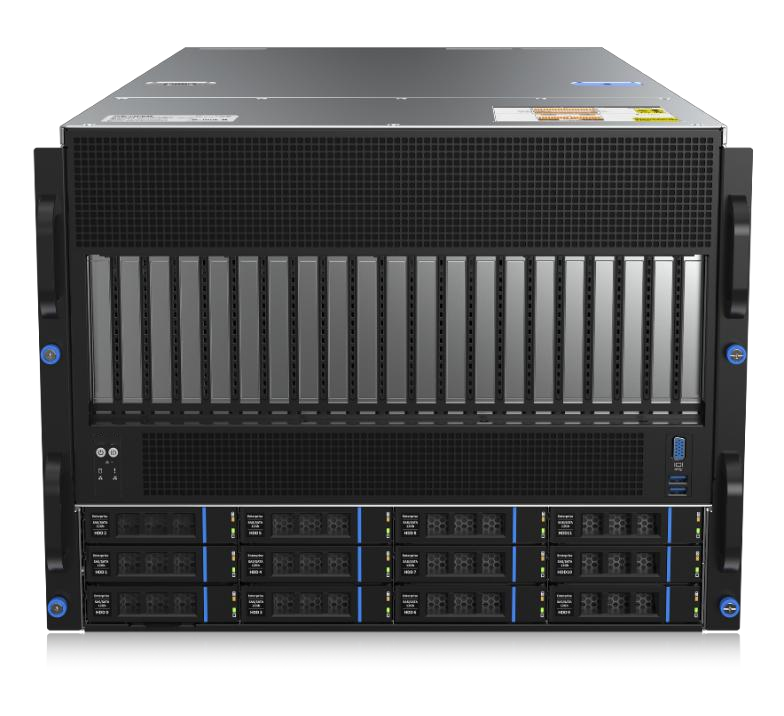

ZC8850 Overview
All-new architecture for extreme performance: supports 1 or 2 4th/5th Gen Intel® Xeon® Scalable processors; backed by the latest DDR5 and PCIe 5.0 technologies to accelerate data transfer rates; direct CPU-GPU interconnect delivers extreme multi-card computing power.
Flexible Topology for Key Applications
Direct CPU-GPU interconnect supports up to 8 x 600W dual-width, triple-width, 3.5-slot and 4.5-slot GPUs for high-speed, stable operation; supports common and performance CPU-GPU interconnect topologies to suit more application scenarios.
Rich Ecosystem, Stable & Reliable
Compatible with both foreign and domestic AI accelerator cards; critical system components use redundant design and functional parts use modular design, improving product reliability and serviceability; supports smart remote management and smart remote fault diagnosis, ensuring efficient and stable 24/7 operation.
| System Model | ZC8850 |
|---|---|
| Processor | Supports 1 or 2 4th/5th Gen Intel® Xeon® Scalable processors, up to 350W TDP |
| Chipset | Intel® C741 series server-grade chipset |
| GPU Card | Direct 8-GPU server fan edition: supports 8 x 600W triple-width, 3.3-slot, 3.5-slot and 4.5-slot RTX 5090 fan cards or other 600W fan-cooled GPUs, with a front+rear 4+4 split, top/bottom dual air-channel layout; Direct 8-GPU server turbo edition: supports 8 x 600W dual-width, 2.5-slot RTX 5090 turbo cards or other 600W turbo GPUs, with an 8-card rear side-by-side centralized cooling air-channel layout |
| Memory | 32 DDR5 memory slots, supports DDR5 4400/4800/5600MHz memory |
| Storage Controller | 2 x Slimline 4x ports (SATA), 2 x 2280/22110 M.2 (SATA/PCIe 3.0 x1) |
| Storage | 12 hot-swap 3.5"/2.5" SAS/SATA/NVMe drives |
| I/O Ports | Front ports: 2 x USB3.0, 1 x VGA; Rear ports: 1 x serial port, 2 x USB3.0, 1 x VGA, 1 x RJ45 management port (optional 2 x 10G RJ45 service ports) |
| PCIe Expansion | Supports up to 13 PCIe expansion slots |
| Power Supply | Supports 8 CRPS 1600W/2200W/2600W power modules, supports hot-swap and N+N, N+M redundancy modes |
| Fans | Standard 6 x 6056 and 6 x 12038 fans |
| Management | 1 x dedicated RJ45 management port |
| Security | Supports TPM 2.0 module, open-cover alarm, BMC/BIOS redundancy |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VMware ESXi, etc. |
| Server Dimensions | 910 x 446 x 364.6mm (D x W x H) |
| Operating Temperature | Operating temperature: 5°C - 35°C (no direct sunlight); Storage temperature: -40°C - 70°C |
